E1/K1 PAC are the programmable automation controllers with powerful ARM-based 32-bit with integrated fieldbus and panel interface.
E1 and K1 PAC series are suitable for universal PLC applications and for activities with high demands on processing power, graphic performance and communication capability.

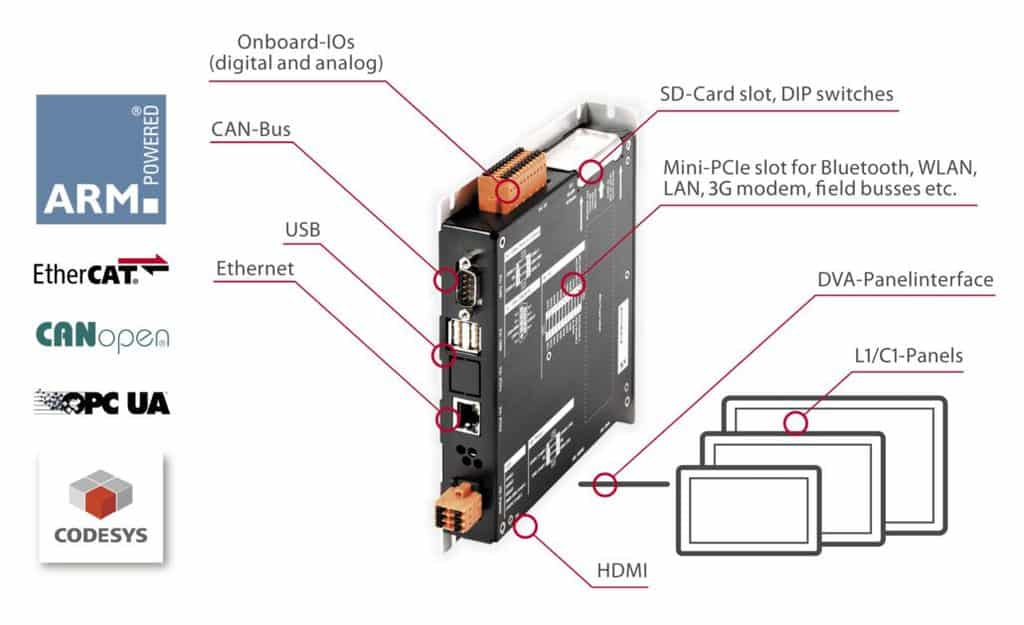

E1/K1 have a wide range of communication interfaces, a high-performance CPU and a M.2/Mini-PCIexpress expansion slot for function extensions.
These controllers are programmed in CODESYS in the common IEC 61131-3 languages.
The integrated OPC-UA server allows ERP, MES and SCADA systems the access to application data and serves as an interface for M2M communication.
Main Features
| Controller | E1 | K1 |
| CPU | ARM® Cortex®-A9 Multicore CPU (Single-, Dual- or Quad-Core), 1GHz | ARM® Cortex®-A9 Multicore CPU (Single-, Dual- or Quad-Core), 1GHz |
| Memory | >= 1 GB DDR3 RAM | >= 1 GB DDR3 RAM, >= 1 GB Flash (optional), >= 8 kB NVRAM |
| Serial port | over CA-Expansionslot | 2 x over Onboard PIN-Header |
| USB port | 2 x USB over Type A Stecker | 2 x USB over Type A Stecker, 1 x USB OTG |
| Ethernet port | 1 x 10/100 MBit/s, 1 x 10/100/1000 MBit/s (Intel i210, optional) | 1 x 10/100 MBit/s, 1 x 10/100/1000 MBit/s (Intel i210, optional) |
| Video port | 1 x HDMI | 1 x HDMI, 1 x DVA-Panelinterface |
| Expansionslots | M.2 (WLAN, Modem, Fieldbusses, Bluetooth, etc.) CA-Expansionslot (IOs, serial ports, CAN, etc.) | Mini-PCIe (WLAN, Modem, Fieldbusses, Bluetooth, etc.) |
| Storage | SD-Card Slot |
| Fieldbusses | 1 x EtherCAT Master (opt.), 2 x CAN (over CA-Expansion slot) |
| Onboard I/Os | - |
| Dimension | 170 x 83 x 28 mm |
| Power supply | 24VDC |
| Cooling | Passive |
| Housing | Metal |
| Mounting | Wallmount or as xE/xK-Systemunit on L1/C1 automation panels |
| Operating temperature | 0°C ÷ +55°C |
| Protection class | IP20 |
| Operating System | Linux, Windows WEC7 (others on request) |
| Software | CODESYS IEC-61131 V3, OPC-UA Server, CODESYS Target-/Web visualization, Qt (others on request) |
| Certifications | CE, RoHS |
