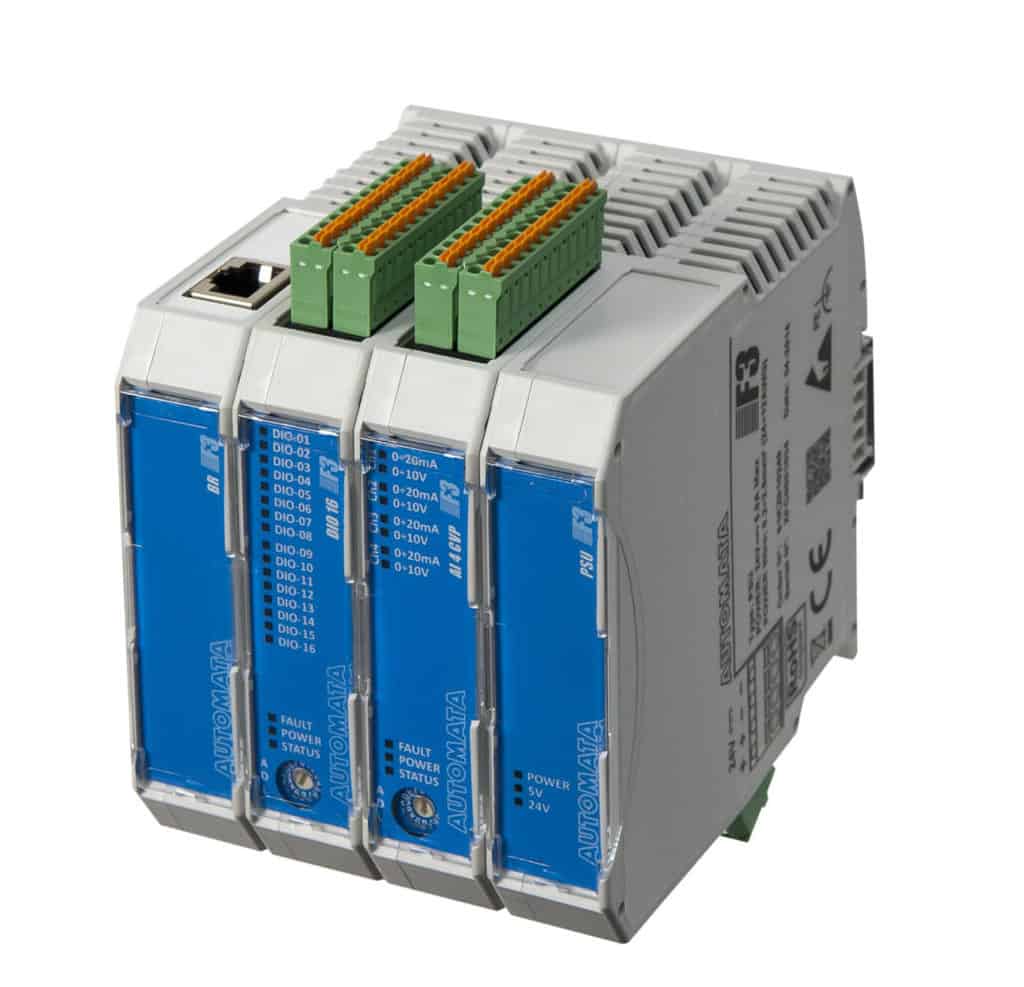

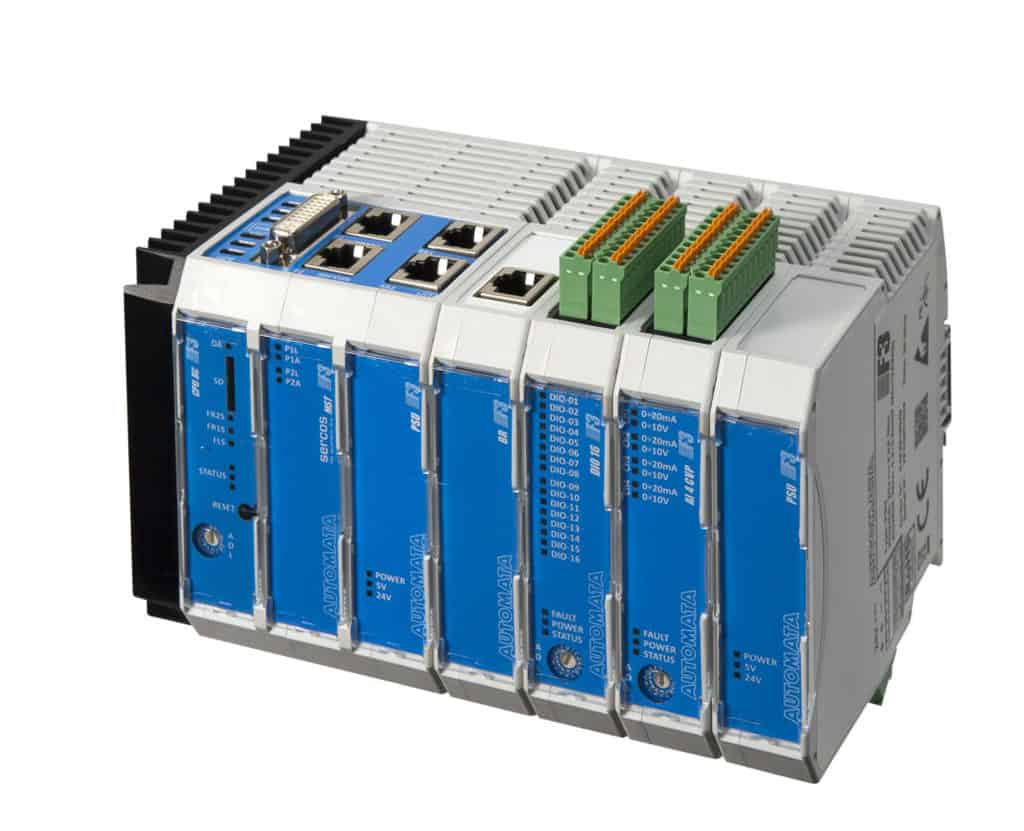

Our F3 I/O modules are an efficient interface for acquiring plant parameters regarding the automation process and machine control.
The I/O modules are directly integrated into the control system or can be extended to remote locations. The high versatility and free combination allows reducing installation costs and simplify maintenance activities.
The F3 I/O modules support all standard fieldbus systems and are available in a wide range of solutions: analog I/O, digital I/O, digital power, encoders counter and wireless communication.
This allows the user to create the configuration that best suits their needs.
Main Features
| Bus Coupler | SERCOS III BUS COUPLER CANOpen BUS COUPLER MODBUS BUS COUPLER Bus Replicator |
| Digital I/O | 16 DIG-IN/OUT 0.5A 4 DIG-OUT 2A 16 DIG-OUT 2A |
| Analog I/O | 2 AN-IN current/voltage 0-20mA/0-10V 2 AN-IN voltage 0-10V AND 10V POT 4 AN-IN current/voltage 0-20mA/0-10V AND 10V POT 2 AN-OUT current/voltage 0-20mA/0-10V 2 AN-OUT voltage -10+10V/0-10V 3 THERMOCOUPLE INPUT J/K 2 THERMORESISTANCE INPUT PT100 |
| Encoder counter | Dual incremental encoder reader quad counter |
| Modem | USB Modem for industrial application |
| Power supply | Power supply with bus terminator - Power supply with bus replicator |
