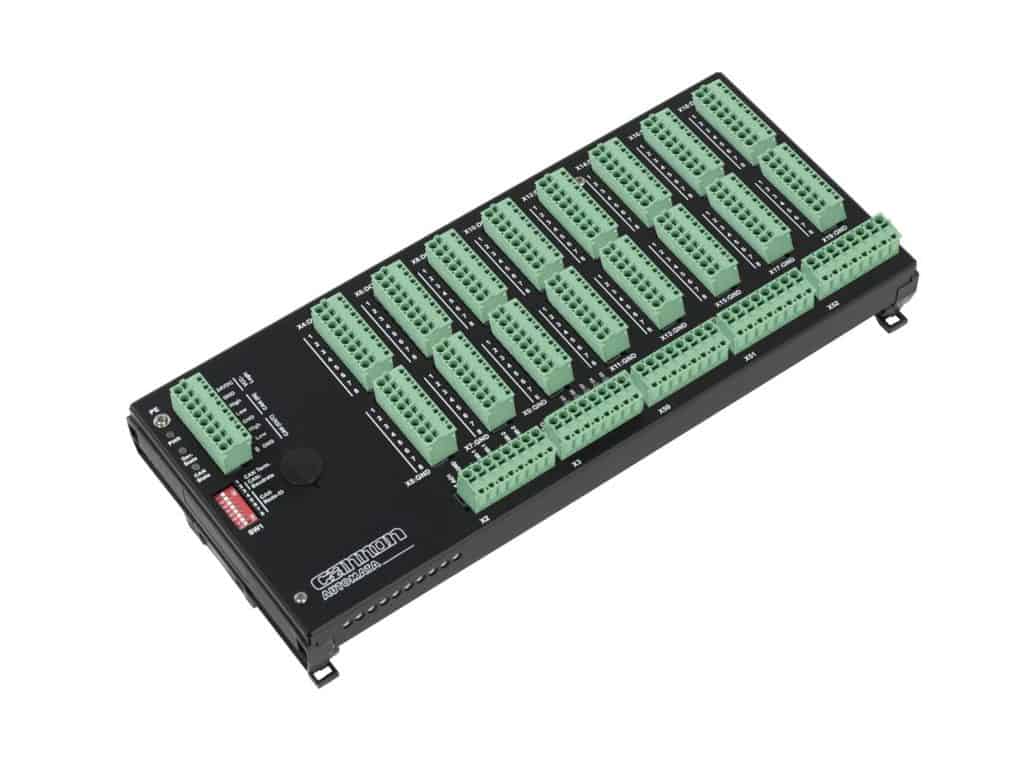

Cannon Automata’s Block-I/O series is versatile and easy to use.
The Block-I/O systems support CANOpen fieldbus systems and are available in two sizes: small and medium.
Main features
Small version
| Bus coupler | CANOpen |
| 24 x DI | Single wire input, common GND, no LEDs, 24VDC |
| 40 x DO | Single wire output, common GND, no LEDs, 0.5A/24VDC |
| 1 x 0-10V AO 2 x PT100 AI | No galvanic insulation, 12bit resolution |
| I/O connectors | Terminal blocks for > 1,5 mm2 wires |
Medium version
| Bus coupler | CANOpen |
| 40 x DI | Single wire input, common GND, no LEDs, 24VDC |
| 56 x DO | Single wire output, common GND, no LEDs, 0.5A/24VDC |
| 1 x 0-10V AO 2 x PT100 AI | No galvanic insulation, 12bit resolution |
| IO connectors | Terminal blocks for > 1,5 mm2 wires |
