The A2 PAC device series combine the advantages of a PC-based controller with the typical characteristics of a PLC and motion controller.
Powerful Intel® Atom™ Multi-Core and Core™-i CPUs allow the realization of the most demanding control and visualization applications.

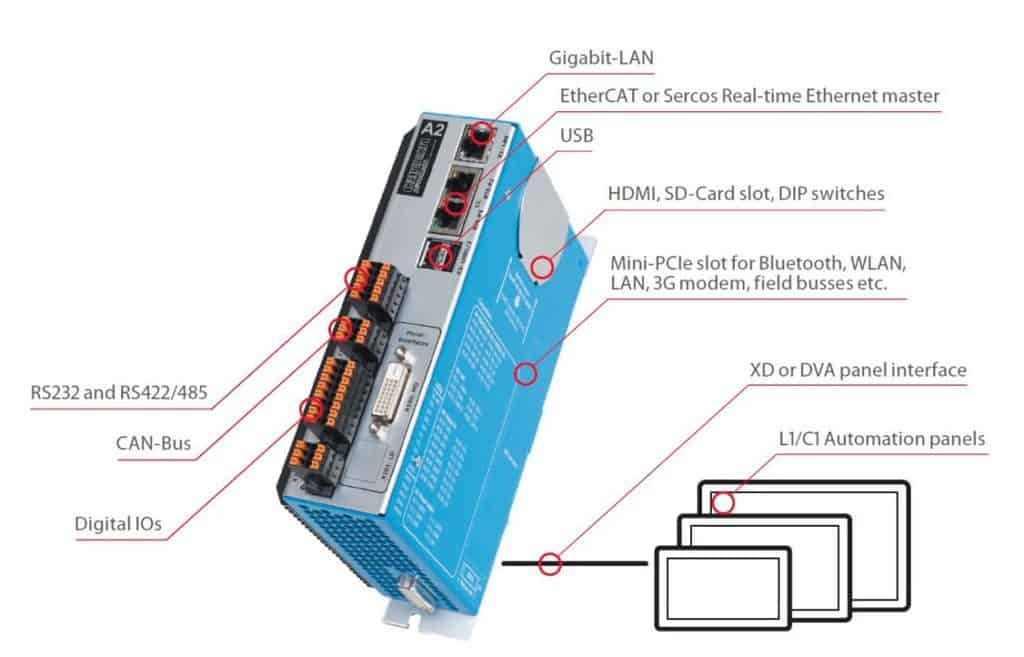

The A2 PAC base units have a wide range of communication interfaces and a Mini-PCI express slot for easy integration of additional functions like WLAN, 3G modems and further fieldbusses.

A2 PAC base units are programmed with CODESYS in the common IEC 61131-3 languages. This proven engineering tool is also used to create visualizations.
The integrated OPC-UA server allows ERP, MES and SCADA systems the access to application data and serves as an interface for M2M communication.

Main features

  • Intel® Atom™ to Core™-i CPUs
  • EtherCAT® or Sercos® Master Interface, CAN
  • XD- or DVA Panel Interface for L1/C1 Panels
  • CODESYS IEC 61131-3
A2 PAC BROCHURE

Technical features A2 PAC Series

CPUIntel® Atom™ to Core™-i CPUs
MemoryDDR3 (1 GB or greater), 512 kB NVRAM (MRAM), 8 MB SRAM for optional Onboard-CPU
Serial port1 x RS232, 1 x RS422/RS485
USB port2 x USB over Type A connector, 1 x USB over DVA panel interface
Ethernet port1 x 10/100/1000 MBit/s Ethernet
Video port1 x HDMI, 1 x XD panel interface, 1 x DVA panel interface
ExpansionslotsLAN, WLAN, Bluetooth, further fieldbusses, external SATA interface, 3G modem, etc
StoragemSATA (2 GB or greater), SD-Card slot
Fieldbusses1 x RT-Ethernet with 2 x RJ45 for Sercos or EtherCAT (each master or slave), 1 x CAN
Onboard I/Os4 x DI (24V DC), 4 x DO (0,5 A)
Dimension175 x 120 x 55 mm
Power supply24VDC
CoolingPassive
HousingMetal
Mountingwallmount
Operating temperature0°C ÷ +55°C
Protection classIP20
Operating SystemsWindows® CE, Windows® Embedded, Linux (others on demand)
SoftwareCODESYS IEC-61131, OPC-UA Server, CODESYS target-/web-visualization, Qt (others on demand)
CertificationCE, RoHS
