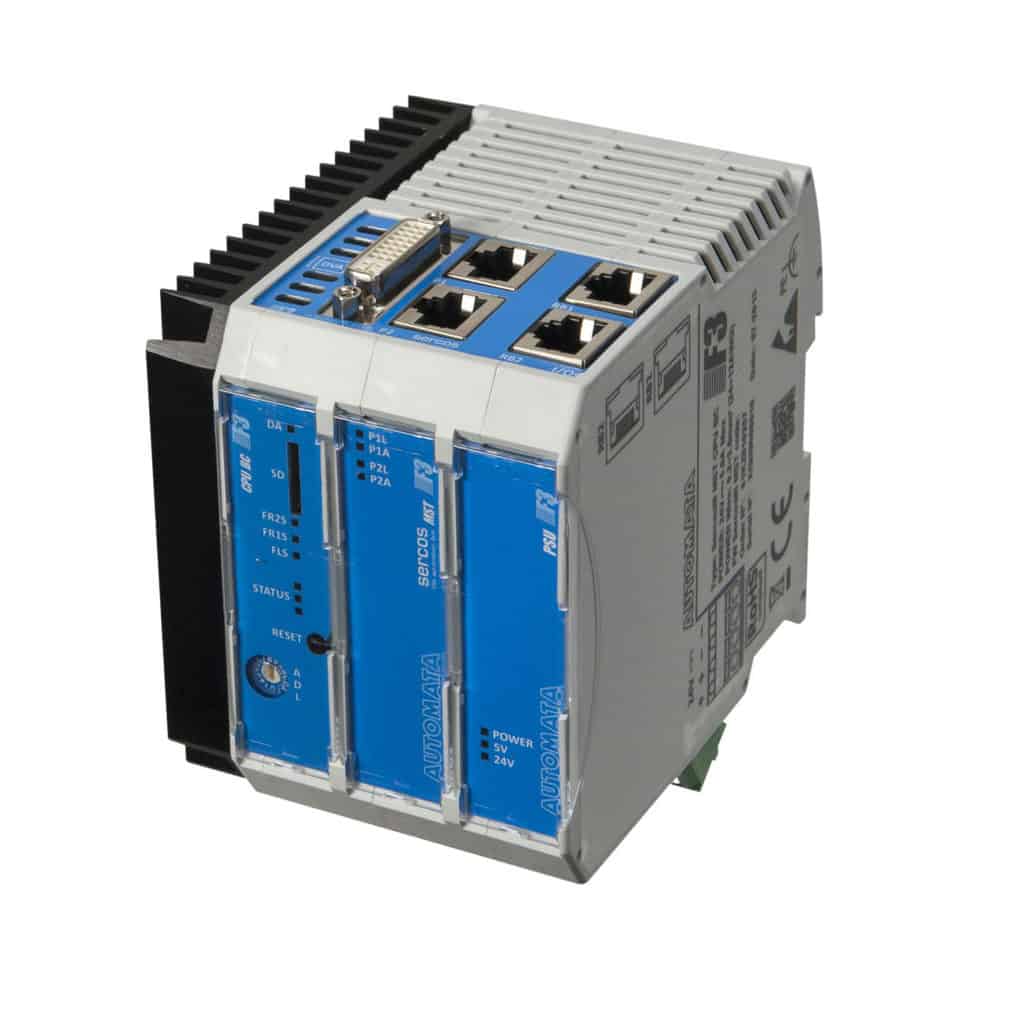

F3 PAC is the Programmable Automation Controller, developed by Cannon Automata, that combines the features and the capabilities of a PC-based control system with those of a typical PLC and motion control.
The F3 modular control system, in Intel® Atom™ or Intel® Celeron® versions, is available in a wide range of configurations for different industrial applications according to customer requirements.
This PAC Series supports several standard-networking interfaces, such as EtherCAT, Sercos III, CANopen, ModBUS on-board I/O interfaces and add-on PC cards.
The F3 PAC is programmed with CoDeSys in IEC-61131.
Main Features
| CPU | Intel®Atom™ E3815 1.46 GHz single core or Intel® Celeron® N2807 dual core |
| Memory | 2GB |
| Memory Card | One microSD memory card socket |
| Serial port | One RS232/422/485 configurable port |
| USB port | 1 port USB 2.0 |
| LAN | 1 x Gigabit Ethernet, RJ45 plug |
| Wi-Fi | Only for WEC Version CPU |
| Video port | 1 x DVA Automata Panel interface |
| Fieldbusses | Sercos III or EtherCAT Master Interface or CANopen Master or ModBUS |
| I/O’s | Digital: 16DI/16DO 0.5A, 4DI/4DO 2A, Analog: 2AO, 2AI, 2Pt100/3TC, max. 15 local IO modules or remote over a max. 15 m long cable |
| NVRAM | 256 Kbytes NVRAM |
| Power supply | 24VDC |
| Dimensions | 99x115x60 mm (2-slot base unit), 99x115x80 mm (3-slot base unit) |
| Operating temperature | 0°- 55° Celsius |
| Mounting | DIN rail |
